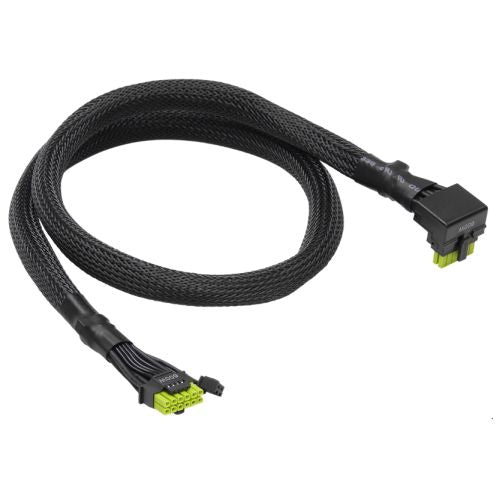

Asrock 12V-2x6 600W / L-Type Cable, Compliant to ATX 3.1 & PCIe 5.1, 90° Connector
Asrock 12V-2x6 600W / L-Type Cable, Compliant to ATX 3.1 & PCIe 5.1, 90° Connector
Regular price
£17.99 GBP
Regular price
Sale price
£17.99 GBP
Taxes included.
12V-2x6 600W / L-Type Cable
- Compliant to ATX 3.1 and PCIe 5.1
- Dual Color Design
- Cable Over-Temperature Protection (ASRock Taichi / Phantom Gaming Series PSU Only)
- The 12V-2x6 format is backwards compatible with 12VHPWR
- L-Type 12V-2x6 connector (GPU side) to 12V-2x6 connectors (PSU side)
- Maximum 600 W rated power
- 16 AWG (American Wire Gauge) size
- HCS (High-Current System) terminals with 94V-0 plastic material for 12V-2x6 connector housing
- Power supply requirement 750W and above
Space-Saving 90° Connector
Easily connect your GPU without worrying about cable bend radius. The right-angled design allows closer installation and better cable management.
Note: Compatibility may vary by GPU model. Ensure that all four signal pins are aligned correctly on the connector side.
RECOMMENDATION on how to use our 12V-2x6 cable
- Please follow the recommendations of your VGA card manufacturer on the power requirement.
- 12V-2x6 connectors must be plugged in at all times to your power supply.
- All connectors must be INSERTED, CLICK-LOCKED and SEATED properly.
- DO NOT bend the cable in any direction once it is plugged into place.
- DO NOT bend or apply force to the cable too close to the connector.
Native PCIe 12V-2x6 Cable
- Dual Color Design - With ASRock Classic Green connectors, users can easily see if the connector has been plugged properly.
- Cable Over-Temperature Protection - The NTC sensor at the VGA connector monitors the temperature and sends signal the PSU to ensure safe operation (ASRock Taichi / Phantom Gaming Series PSU Only)
Durable & Stylish
Sleeved cable in an elegant all-black finish-built for flexibility, durability, and a neat setup.
Includes customizable stickers-choose from Taichi, Phantom Gaming, or Steel Legend to match your build.
Reliable Performance with Long-Term Durability
Engineered for longevity and backed by ASRock's 2-year warranty, this cable is built to deliver consistent power up to 600W to your GPU without compromise.
Note: The plug must be fully inserted and flush with the graphics card for proper functionality.
